測量原理：電化學

測量范圍：0~1000ppm,0.00~4.00%   (客戶任意選擇)

 精       度：±1.5%F.S

分  辨  率：0 . 01%

重  復 性 ： ± 1 %

穩  定  性：±1%F.S/7d

響應時間：T90≤10S

 存儲間隔：1S-99  min

存儲點數：百萬條+

儀器壽命：整機6年，傳感器2-3年(正確操作使用條件下)

工作電壓：24VDC,1A

整機功耗：≤10W

數字信號：標準的 RS485/RS232  通訊口，可與計算機實現雙向通訊

安裝方式：壁掛式安裝

模擬輸出：4~20mA  標準輸出信號，負載電阻小于500歐(0~10V

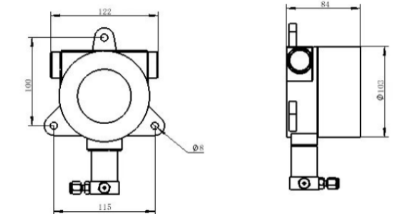

外形尺寸：分析儀：180mm (寬)×220mm (高)×100 mm (深)

防爆標志：ExdⅡCT6

進出氣口：φ6軟管(可根據客戶訂制)

整機重量：1.5kg

環境溫度： - 25℃~+55℃

環境濕度：≤90%RH

入口壓力：0.05 MPa≤ 入口壓力≤0.25Mpa

樣氣流量：(400±50) ml/min

樣氣要求：無塵、無水、無油



●進口電化學傳感器，具有壽命長、精度高、響應快等特點；

●體積小、重量輕，便于安裝；分體防爆設計； 一次表帶現場顯示功能；

●變送輸出信號遠傳可達500米以上；

●上下限控制點可在全量程范圍內任意設置；

●報警點可在全量程范圍內任意設置。

電解水制氫、石油化工、空分、醫藥行業以及生物發酵等工業生產過程中氧含量的本安防爆 的在線檢測分析。
