測量原理：微流熱導式(擴散式)

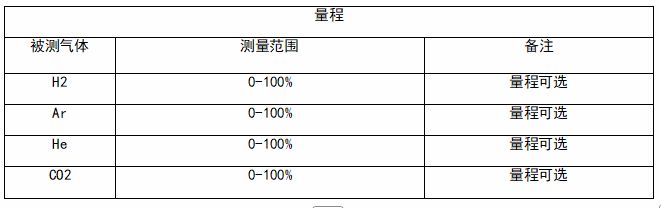

測量范圍：0%~10%;0%~50%;0%~100%(量程可任意選擇)

分  辨  率： 0.01/0.1%(根據量程而定)

  重  復  性：≤±1%FS

穩   定   性：零點漂移≤±1%F.S/7d

                    量程漂移≤±1%F.S/7d

線   性   度：≤±1.5%F.S

響應時間：T90≤10 秒

 響應時間：<10S

工作電壓：DC12V

預熱時間：≤10min

數字信號：RS-485;TTL 通訊

模擬輸出：4-20mA

安裝方式：固定式

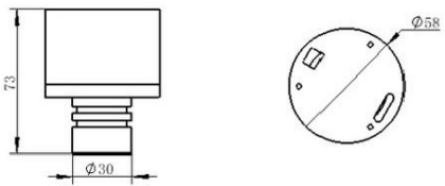

外形尺寸：89cm(高)×97(寬)

進出氣口：φ6軟管

環境溫度：-5℃~+45℃

環境濕度：≤90%RH

入口壓力：0.05MPa≤入口壓力≤0.25MPa

樣氣流量：400+10ml/min

樣氣要求：無塵、無水、無油

●抗腐蝕性，允許樣氣中含有適當濃度的腐蝕性氣體(如硫化物)。

●低漂移熱導電橋的創新設計，保障了高穩定性。

●模塊體積小，便于安裝。

●化肥合成氨流程中氫濃度的分析。

●熱電廠及核電站氫濃度的監測。

●實驗室燃燒試驗的氣體含量測定。

●鋼廠高爐煤氣分析。

●Co2培養箱、科研等單位。
